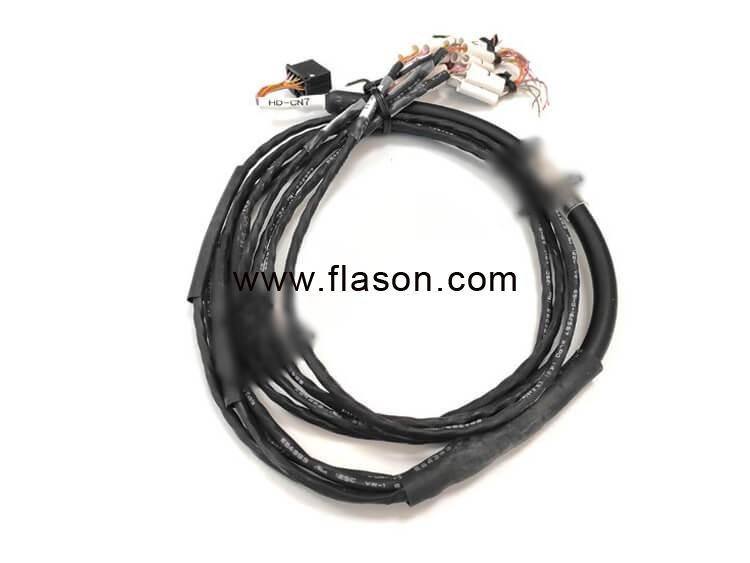

HANWHA SM481 Fly Side Cable HD010-3 AM03-05590A

HANWHA SM481 Fly Side Cable HD010-3 AM03-05590A

Specifications:

1 FC14-900724 PLUG 2

2 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4

3 HP06-900299 COUPLER[KD-M5-SA34697KR] 1

4 HP14-900090 SPEED CON[ASP330F-01-06S] 1

5 HP06-900048 ELBOW FITTING [KQ2L06-M5] 1

6 HP06-900293 ELBOW FITTING[PT18EF] 2

7 FC14-900724 PLUG [PT 1/8] 3

8 HP06-900050 UNION Y FITTING [KQ2U04-06] 1

9 HP14-900092 CHECK VALVE[AKH06-00] 1

10 HP06-900018 FITTING [KQ2U06-00/PY6M] 5

11 HP06-900014 FITTING [KQ2L06-01/PL6-01] 5

12 HP14-900026 SOLENOID VALVE [K180-4E1-21-DC24V] 1

A-1 AM03-014979A BACK UP TABLE ASSY 1 J9053342A

1 J90531003A DRIVING_LINK_ASSY 2

2 J7053792A UPPER LINK PIN[J7053792A] 6

3 J7053793A LOWER LINK PIN[J7053793A] 2

4 J7053796A LOWER LINK SHAFT[J7053796A] 1

5 J71530419B UPPER DRIVING LINK[J7153419A] 1

6 J90531008A LINK_END_ASSYV 2

7 J70530797B LOWER LINK END 1 J7053797A

8 MC03-900098 BALL_BEARING 688ZZ 1

9 J90531004A FREE_LINK_ASSY 2

10 J71530418B UPPER FREE LINK J71530418B 1 J7153418A

12 J90531005A BUT_CYLINDER_ASSY 1

13 J70530794B CYLINDER JOINT PIN 2

14 J7053795A RING FIXER[J7053795A] 3

15 FC14-900506 CYLINDER JOINT[Y-032B] 1

16 HP03-900013 ELBOW FITTING KQ2L04-01/SQL04-01S-W 1

17 HP06-900056 ELBOW FITTING KQ2L04-01/SQL04-01S-W 2

18 J70530800C LOWER PLATE 1

19 J90531006A LOWER_BEARING_ASSY 8

20 J7053790A LOWER BEARING HOLDER[J7053790A] 1

21 J70530801D BACK UP PLATE 1 J70530801C

22 J90531007A UPPER_BEARING_ASSY 8

23 J7053791A UPPER BEARING HOLDER[J7053791A] 1

24 FC29-900536 URETHAN CUSHION[AXNSK15-40] 2

26 FC38-900013 SPRING[SWU26-70] 1

27 FC18-901994 SHOULDER SCREW[MSB6-40] 2

28 EP19-900108 PHOTO SENSOR 1

29 J7053802A UP SENSOR BRACKET[J7053802A] 1

30 FC18-902761 SOCKET HEAD CAP SCREW M5*20 (NI/ZN) 12

31 FC18-902756 SOCKET HEAD CAP SCREW M5*12 (NI/ZN) 2

32 FC18-902745 SOCKET HEAD CAP SCREW M4*15 (NI/ZN) 4

A-2 AM03-014980A BACK UP TABLE ASSY(LARGE) 1 J9053343A

A-3 AM03-014981A BACK_UP_TABLE_ASSY 460_SL 1 J90531421A

A-4 AM03-014982A BACK_UP_TABLE_ASSY-EXL 1 J90531035A

Keywords:

Hanwha SM481 Plus Pick and Place Machine, Hanwha SM482 Plus Pick and Place Machine, Hanwha SM471 Plus Pick and Place Machine, Hanwha Decan S2 Plus Pick and Place Machine, Hanwha SM481 Plus SMT Assembly Line, Hanwha SM482 Plus SMT Assembly Line, Hanwha SM471 Plus SMT Assembly Line, Hanwha Decan S2 SMT Assembly Line.

We provide Hanwha SMT assembly line solutions, including Hanwha Assembly Line Equipments , Hanwha products, Hanwha Pick and Place Machine, Hanwha SMT Stencil Printer, Hanwha Assembly Line, Hanwha SMT Reflow Oven; Hanwha SMT Inspection Machine; Hanwha SMT Spare Parts; Hanwha SMT Peripheral Equipment; any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613632571161, Email: demi@flason.com

1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
