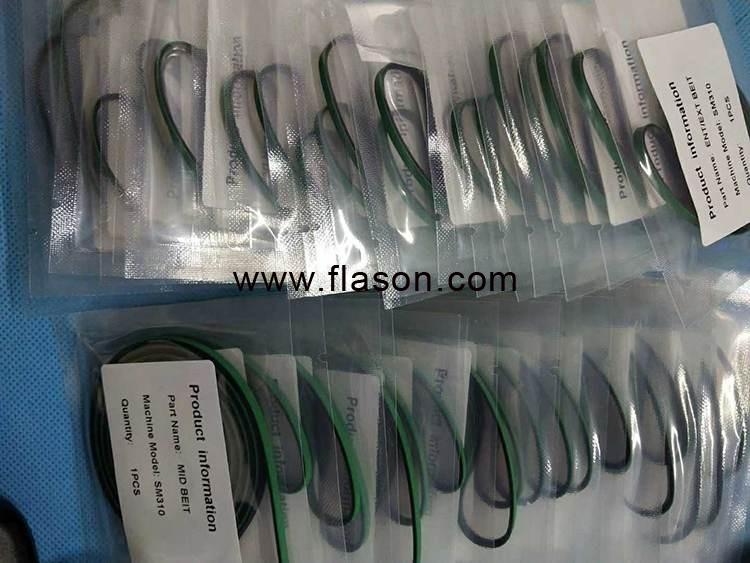

HANWHA CP63 SM310 R-axis belt J6602069A MC05-900040 166-2GT

HANWHA CP63 SM310 R-axis belt J6602069A MC05-900040 166-2GT

Specifications:

1 FC09-002274A BRACKET-OUT_ILL_BKT 2

2 AM03-015254A ASSY,BOARD-SM482 VACUUM SENSOR 1 AM03-007104A

3 FC09-002281A BRACKET-BKT_AIR_L 1

4 AM03-015252A SM482_AIR_MODULE_SMC 1

HP04-000018B FILTER,AIR-FILTER ELEMENT

5 J9060357B HEAD OUTER LED BOARD ASSY[Rev 1.1] 1

6 HP14-000163 VALVE,SOLENOID-MAC_solenoid valve 6

7 FC09-002282A BRACKET-BKT_AIR_R 1

8 FC07-000534A MT82P-HD203A-OUT_ILL_BLOCK 1

9 FC07-001724A OUTER_ILL_BLOCK 1

1 J7055143B CAM [J7055143B] 2

2 J7155522A PULLEY (S-AXIS 1)[J7155522A] 1

3 MC05-900048 TIMING BELT[255-3GT-6] 1

4 J7055557A BEARING HOUSING[J7055557A] 1

5 J7155523A PULLEY (S-AXIS 2)[J7155523A] 1

6 J7155524A MIRROR MOTOR BRACKET[J7155524A] 1

7 J7255081A MIRROR MOTOR ISOLATOR[J7255081A] 1

8 AM03-015386A CABLE ASSY-SW MOTOR 1 AM03-001762C

9 J7055560A MIRROR SPRING BRACKET[J7055560A] 2

10 J7455026A SPRING BUSH[J7455026A] 4

11 J7055558A MIRROR PIN 1[J7055558A] 2

12 J7055560A MIRROR SPRING BRACKET[J7055560A] 2

13 FC30-000217A PLATE-MIRROR_ARM-LEFT;ALDC-14 1

14 MC11-900055 CAM FOLLOWER [CF3UU-A] 2

15 J7055204A ARM JOINT [J7055204A] 1

16 MC03-900034 BALL BEARING [MR148ZZ] 2

17 J7055205A MIRROR JOINT-LEFT [J7055205A] 1

18 FC18-001484A MIRROR SCREW 1 J7055153A

19 MC03-900033 BALL BEARING [695ZZ] 4

20 J7055207B MIRROR SHAFT [J7055207B] 1

21 J7055163A BEARING HOUSING [J7055163A] 1

22 AM03-015583A CABLE ASSY-CABLE ASSY-SW_HOME_SENSOR 1

23 J7055556B MIRROR SENSOR BRACKET[J7055556B] 1

24 J7055559A MIRROR PIN 2[J7055559A] 1

25 J7155197A MIRROR FIXED PLATE 2

26 J6755002A FOLDING MIRROR [J6755002A] 1

27 J7155530A MIRROR SUPPORT[J7155530A] 1

28 FC30-000216A PLATE-MIRROR ARM-RIGHT;ALDC-12 1

29 J7155525A MIRROR SENSOR DOG[J7155525A] 1

30 AM03-006939A CABLE ASSY-HEAD_SIDE_LED 1

31 J7255085A SIDE ILLUM ISOLATOR[J7255085A] 1

Keywords:

Hanwha SM481 Plus Pick and Place Machine, Hanwha SM482 Plus Pick and Place Machine, Hanwha SM471 Plus Pick and Place Machine, Hanwha Decan S2 Plus Pick and Place Machine, Hanwha SM481 Plus SMT Assembly Line, Hanwha SM482 Plus SMT Assembly Line, Hanwha SM471 Plus SMT Assembly Line, Hanwha Decan S2 SMT Assembly Line.

We provide Hanwha SMT assembly line solutions, including Hanwha Assembly Line Equipments , Hanwha products, Hanwha Pick and Place Machine, Hanwha SMT Stencil Printer, Hanwha Assembly Line, Hanwha SMT Reflow Oven; Hanwha SMT Inspection Machine; Hanwha SMT Spare Parts; Hanwha SMT Peripheral Equipment; any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613632571161, Email: demi@flason.com

1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
