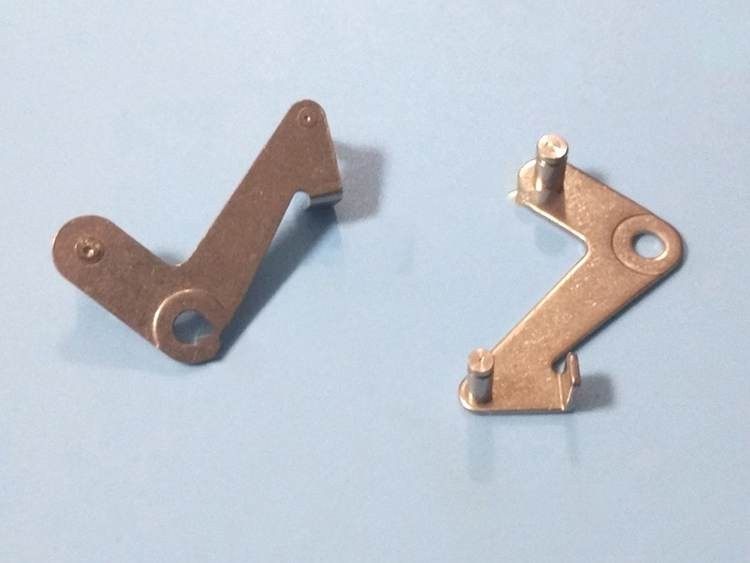

HANWHA CP 8mm FEEDER control lever pawl push rod PAWL LEVER J7000880

HANWHA CP 8mm FEEDER control lever pawl push rod PAWL LEVER J7000880

Specifications:

1 J90531003A DRIVING_LINK_ASSY 2

2 J7053792A UPPER LINK PIN[J7053792A] 6

3 J7053793A LOWER LINK PIN[J7053793A] 2

4 J7053796A LOWER LINK SHAFT[J7053796A] 1

5 J71530419B UPPER DRIVING LINK[J7153419A] 1

6 J90531008A LINK_END_ASSYV 2

7 J70530797B LOWER LINK END 1 J7053797A

8 MC03-900098 BALL_BEARING 688ZZ 1

9 J90531004A FREE_LINK_ASSY 2

10 J71530418B UPPER FREE LINK J71530418B 1 J7153418A

12 J90531005A BUT_CYLINDER_ASSY 1

13 J70530794B CYLINDER JOINT PIN 2

14 J7053795A RING FIXER[J7053795A] 3

15 FC14-900506 CYLINDER JOINT[Y-032B] 1

16 HP03-900013 ELBOW FITTING KQ2L04-01/SQL04-01S-W 1

17 HP06-900056 ELBOW FITTING KQ2L04-01/SQL04-01S-W 2

18 J70530800C LOWER PLATE 1

19 J90531006A LOWER_BEARING_ASSY 8

20 J7053790A LOWER BEARING HOLDER[J7053790A] 1

21 J70530801D BACK UP PLATE 1 J70530801C

22 J90531007A UPPER_BEARING_ASSY 8

23 J7053791A UPPER BEARING HOLDER[J7053791A] 1

24 FC29-900536 URETHAN CUSHION[AXNSK15-40] 2

26 FC38-900013 SPRING[SWU26-70] 1

27 FC18-901994 SHOULDER SCREW[MSB6-40] 2

28 EP19-900108 PHOTO SENSOR 1

29 J7053802A UP SENSOR BRACKET[J7053802A] 1

30 FC18-902761 SOCKET HEAD CAP SCREW M5*20 (NI/ZN) 12

31 FC18-902756 SOCKET HEAD CAP SCREW M5*12 (NI/ZN) 2

32 FC18-902745 SOCKET HEAD CAP SCREW M4*15 (NI/ZN) 4
