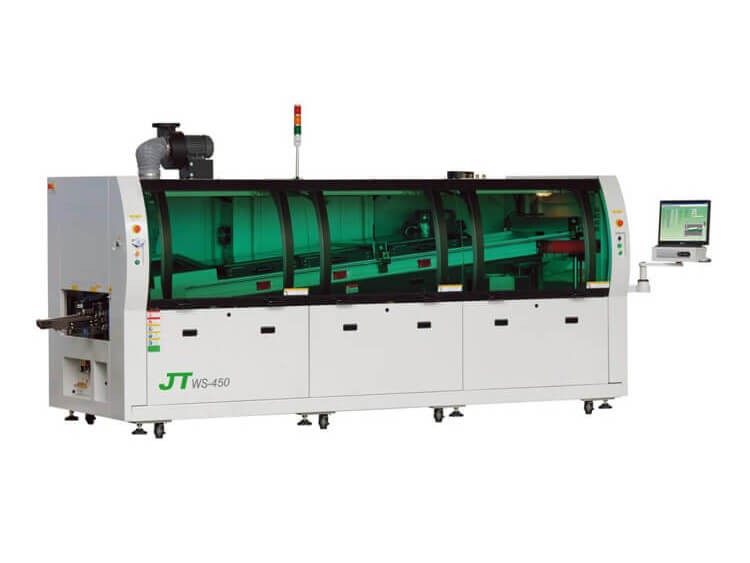

JT Wave Soldering Machine WS-450

No. of preheating zones:4
Preheating length: 2480 mm
Control system: PC + PLC
Dimensions 4350(L) x 1600(W) x 1730(H) mm

JT Wave Soldering Machine WS-450

Specifications:

JT Wave Soldering Machine WS-450

Free combination of preheating module can be arbitrary chosen hot air and infrared preheating Preheat diverse portfolio

Maximum transport capacity of the entire rail 60 kg, meet the demanding production needs

Low tin slag amount of oxidation, new wave nozzle design, tin furnace has automatic access lifting function

Regional selective spray flux can save more than 70%

Free combination of preheating module can be arbitrarily chosen hot air and infrared preheating preheat diverse portfolio

Segmented transport rail design, 60 kg rail transport capacity, the maximum width of products through increased to 610 mm

Dimensions

4350(L) x 1600(W) x 1730(H) mm

Power supply

3P 5 W, 380 VAC, 50/60 Hz, 63 A

Power

80 kW

Total power

45 kW

Working power

Approx. 12.5 kW

Control system

PC + PLC

No. of preheating zones

4

Preheating length

2480 mm

Preheating temp.

Room temp - 250°C

PCB size

50 - 450 mm

Height

Top: 120 mm; Bottom: 25 ± 5 mm

Speed

300 - 1800 mm/min

Entry height

750 ± 20 mm (Option: 900 ± 20 mm)

Conveyor angle

4 - 7°

Conveyor motor power

90 W 3P 220 VAC

Keywords:

Hanwha SM481 Plus Pick and Place MachineHanwha SM482 Plus Pick and Place MachineHanwha SM471 Plus Pick and Place MachineHanwha Decan S2 Plus Pick and Place MachineHanwha SM481 Plus SMT Assembly LineHanwha SM482 Plus SMT Assembly LineHanwha SM471 Plus SMT Assembly LineHanwha Decan S2 SMT Assembly Line.

We provide Hanwha SMT assembly line solutions, including Hanwha Assembly Line Equipments Hanwha productsHanwha Pick and Place MachineHanwha SMT Stencil PrinterHanwha Assembly LineHanwha SMT Reflow OvenHanwha SMT Inspection MachineHanwha SMT Spare PartsHanwha SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
