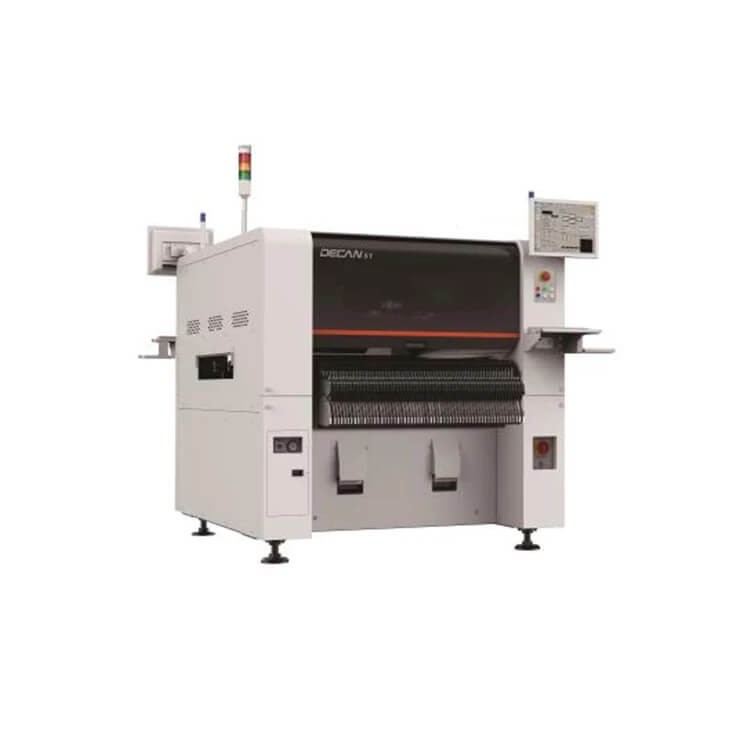

Hanwha DECAN S1 Pick and Place Machine

Speed: 47,000 CPH
PCB Size : L510xW510
Feeder input:120pcs
Weight: 1600KG

Hanwha DECAN S1 Pick and Place Machine

Specifications:

Hanwha DECAN S1 Pick and Place Machine

• Improves actual productivity

• Improves placement quality

• Reduces loss rate

Highest Performance among Chip Mounters of the Same Class

Highest Applicability of Medium Speed Chip Mounters to PCBs

• 510 x 510mm (standard) / 1500 x 460mm (option)

– Possible to produce PCBs up to 1,500mm(L) x 460mm(W) in size

Expands the Component Recognition Range with a High Pixel Camera

• The fly camera can recognize all chips of 03015 ~  16mm

Improves Simultaneous Pickup Rate

• Arranges pocket positions automatically through communication between the machine and feeder

Improves the Placement Speed of an Odd-Shape Component

• Increases speed by approximately 25% by optimizing the fix camera recognized motion sequence

Places Microchips Stably

Recognizes the Nozzle Center

• Improves the microchip loss rate and placement quality by preventing the occurrence of air leaks

Run Time Calibration

• Maintains placement accuracy by performing automatic calibration during production

Auto Maintenance Prevents Pickup Error and Maintains Placement Quality*

• Measures pneumatic pressure and flow rate of the nozzle and shaft

• Removes foreign materials on the nozzle and shaft by high pressure

air blast

Increased Convenience of Operation

Reduces the Teaching Time of a Large Odd-shape Component

• Expanded FOV of Fiducial Camera:  7.5mm →  12mm

– Reduces the time to teach the component pickup/placement point and improves the convenience of teaching

Maintains the Pickup Coordinate of the Common Feeder

• When changing a model, reduces the model changing time by succeeding the pickup information of a similar model

Unifies the Chip Component Lighting Level

• By setting the same lighting value collectively, minimizes the lighting changing time, removes the productivity deviation by machine and improves the convenience of part DB management

Support of Multi-vendor Component *

• It’s possible to manage the same components supplied by two suppliers in one part name, so it’s Possible to perform production continuously without changing the PCB program for the components supplied by different vendors

Teaches Large-sized Components Easily (Panoramic View)

• Performs split-recognition of a large-sized component that is out of

the camera recognition range (FOV) and merges split component images into a single image before displaying.

– Easily teaches the pickup/placement position of a large-sized component

Length

1430 mm

Width

1740 mm

Height

1485 mm

Weight

1600 kg

Power

400 V / 3 / N / PE - 50 Hz / 60 Hz

Compressed air

Yes

Min. Cross-section

50 mm²

Max. Cross-section

40 mm²

Max. outside diameter

510 mm

Inline

Yes

Dual lane

No

CPH

47000

Piano head

Yes

Turret head

No

Max. comp height

15 mm

Min. comp size

01005 inch

Max. comp size

55x55

Feeder position (8mm)

120

Placement accuracy chip

28μm @ Cpk≥ 1.0

Spindles

10

Gantrys

1

Force control

No

Keywords:

Hanwha SM481 Plus Pick and Place MachineHanwha SM482 Plus Pick and Place MachineHanwha SM471 Plus Pick and Place MachineHanwha Decan S2 Plus Pick and Place MachineHanwha SM481 Plus SMT Assembly LineHanwha SM482 Plus SMT Assembly LineHanwha SM471 Plus SMT Assembly LineHanwha Decan S2 SMT Assembly Line.

We provide Hanwha SMT assembly line solutions, including Hanwha Assembly Line Equipments Hanwha productsHanwha Pick and Place MachineHanwha SMT Stencil PrinterHanwha Assembly LineHanwha SMT Reflow OvenHanwha SMT Inspection MachineHanwha SMT Spare PartsHanwha SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
